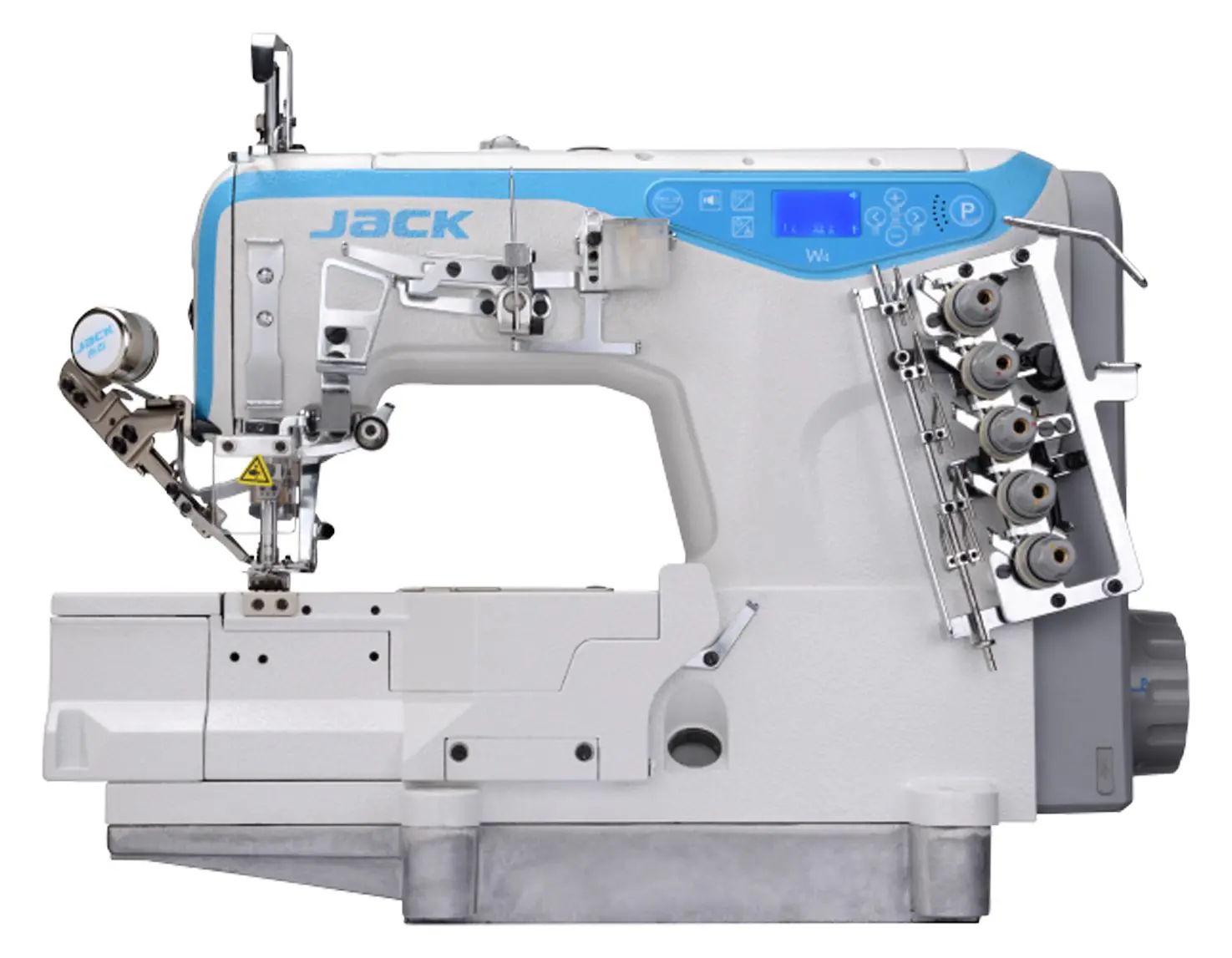

Jack W4-D-05CB Direct Drive Elastic Tape Attaching Machine, with Right-Side Cutter For Light And Heavy Duty
Category:

Jack W4-D-05CB

Direct Drive Elastic Tape Attaching Machine, with Right-Side Cutter

For Light And Heavy Duty

Expand sewing range, suitable for various fabrics.

Voice Guide

Using the machine it will teach you the various functions itself, if there are errors it will notify you and by clicking the VOICE button it will suggest how to solve the problem, moreover with a single key you can return to the initial settings. (Only on -UT)

Multifunction

Normal sewing, tape binding and bottom hem sewing.

Integrated Design

Mechanical and electronics come together in a clean design without wiring but integrated.

Leaflet

Jack W4-D – Parts Book

Jack W4 – Brochure

Specifications

Technical Specifications

Model Jack W4-D-05CB
Function Elastic Lace Attaching
(Right-Side Cutter)
Needle UY128GAS 11-14#
Number of Needles 3
Number of Threads 5
Stitch Width (mm) 1.5-4.55
Stitch Length 5.6/6.4
Differential Ratio 0.65-1.3
Presser Foot Lifting Height (mm) 7
Max Speed (s.p.m) 5500
Volume (mm) 670x445x595
Weight (kg) 48/58
